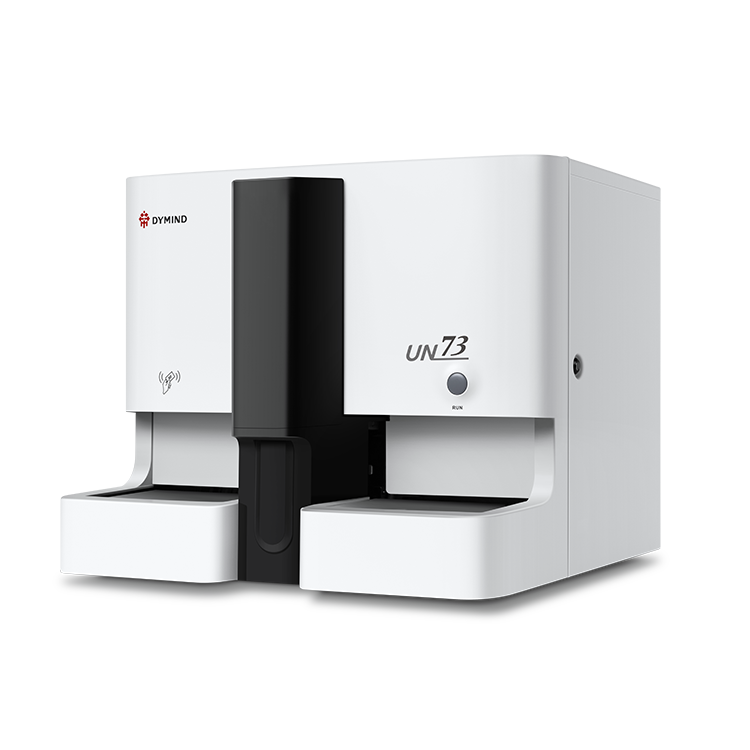

3-Part & 5-Part Combined Auto Hematology Analyzer

Principles:

Flow cytometry (FCM) + Tri-angle laser scatter for WBC differentiation

Impedance method for WBC, RBC and PLT test

Cyanide free colorimetry for HGB test

3-Part parameters (CBC+3DIFF):

21 reportable parameters: WBC, Lym#, Mid#, Gran#, Lym%, Mid%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC 3 histograms for WBC,RBC and PLT

Sample volume: 20μL

Throughput: CBC+DIFF: Up to 80 tests per hour CBC+3DIFF: Up to 90 tests per hour

Test mode: CBC+DIFF,CBC+3DIFF

5-Part parameters (CBC+DIFF):

25 reportable parameters: WBC, Neu#, Lym#, Mon#, Eos#, Bas#, Neu%, Lym%,Mon%, Eos%, Bas%, RBC, HGB,HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC 6 research parameters: ALY#,ALY%,LIC#,LIC%,NRBC#,NRBC% 3 histograms for WBC,RBC and PLT One 3D scattergram and three 2D scattergrams for WBC differention.

Linearity range:

WBC(CBC+3DIFF): 0.00-300.00×109 /L WBC(CBC+DIFF): 0.00-400.00×109 /L RBC: 0.00-8.50×1012/L HGB: 0-250g/L PLT: 0-3000×109 /L HCT: 0.0-67.0%

Repeatability:

WBC≤2%(4.0-15.0×109 /L) RBC≤1.5%(3.5-6.0×1012/L) HGB≤1%(110-180g/L) MCV≤1%(70-120fL) PLT≤6.0%(100-149×109 /L) ≤4.0%(150-500×109 /L)

Sample mode:

Whole blood, capillary whole blood and pre-diluted modes

Printout:

External printer, compatible with multiply laser / inkjet printers,

compatible with various formats and user-defined formats

Storage:

Up to 100,000 records

Communication:

LAN port supports HL7 protocol Support bi-directional LIS

Net weight:

58kg

Power requirement:

100V-240V~，50-60Hz，≤200VA，

Dimension:

650mm(W)x550mm(D)x610mm(H)
